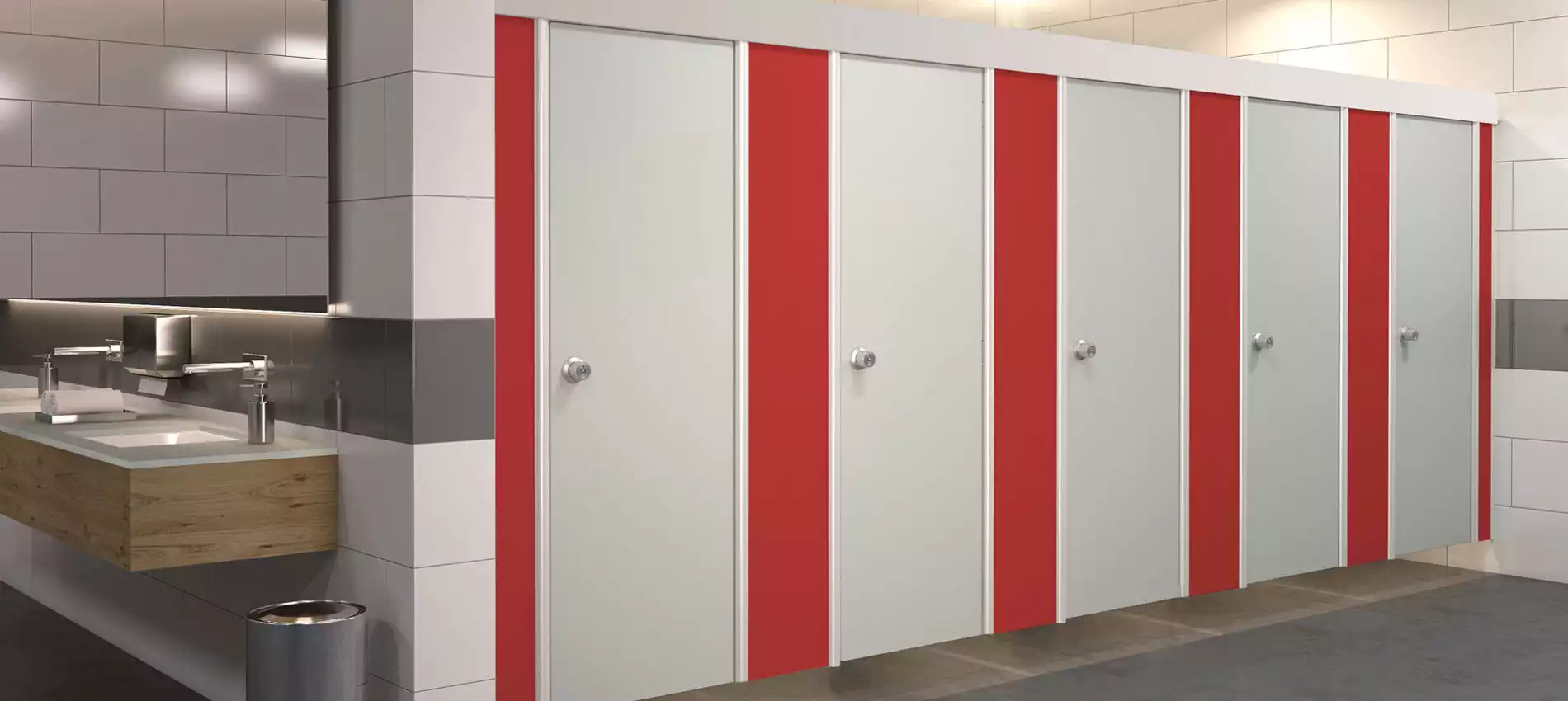

DESIGN 13 RP WC CUBICLE
With rounded aluminium profiles
Our Design 13 RP WC cubicles are the perfect toilet cubicles for any area that faces extreme demands.
They are made of 13 mm HPL solid core panels, which have a special surface finish to make them highly scratch-resistant, low-wear and abrasion-resistant. The solid-core material means that the edges are not finished with an edge band, but are milled directly from the panel material. This system is totally waterproof and a gold standard for stability, functionality and protection against vandalism.
Технически спецификации
Материал на лицевия
Made of 13 mm water-resistant HPL panels with a brushed surface on both sides. All visible edges milled and chamfered. An all-round 3-chamber aluminium cover profile, 45 x 86 mm, which runs across the entire frontside, ensures the system is extremely stable. Wall connections with rounded aluminium U-profiles 22 x 30 mm. These are used to compensate for structural unevenness.
Врати
Made of the same material as the frontside, flush-mounted and self-closing. All edges are rounded to a radius of 20 mm, all corners are rounded to a radius of 9 mm. Door stop made of aluminium round profile ø 45 mm, with inserted rubber seal on the lock side to ensure quiet closing of the door.

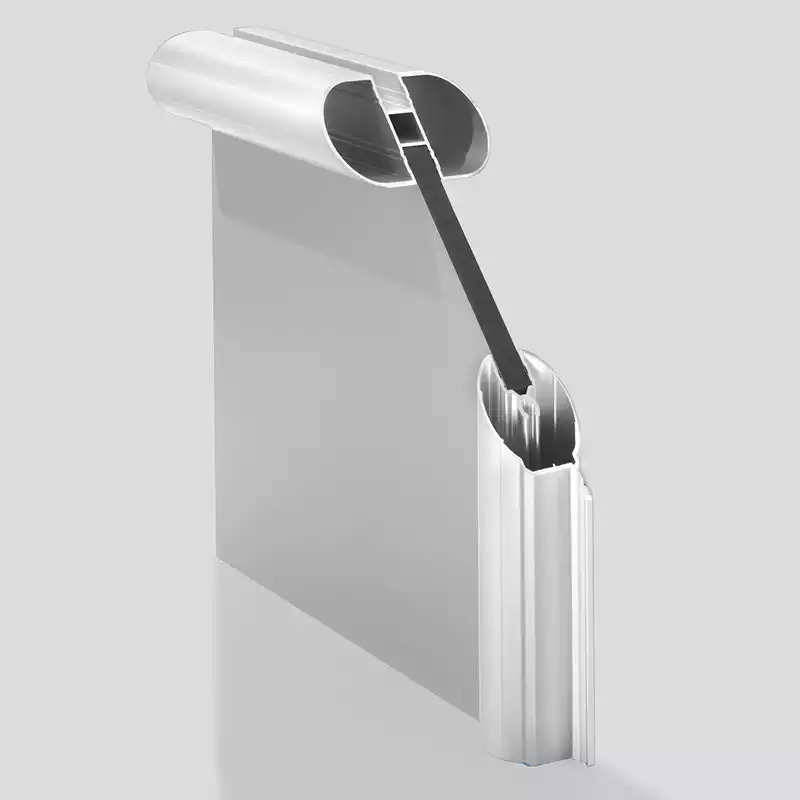

Материал на панела
13 mm thick HPL solid core panels, which have a special surface finish to make them highly scratch-resistant, low-wear and abrasion-resistant. The solid-core material means that the edges are not finished with an edge band, but are milled directly from the panel material. This system is totally waterproof and a benchmark for stability and functionality.
• Made of 13 mm HPL plate
• With rounded aluminium profiles
• Suitable for the highest demands in wet areas
Цветова гама
Panels standard colours
-
White
-
Grey
-
Light beige
-
Fango
-
Yellow green
-
Dark grey
-
Graphite
-
Rybu red
-
Mango
-
Gentian blue
-
Pepper white
-
Pepper grey
Panels special colours with surcharge. Delivery time 3-5 weeks.
Due to the current difficulties in the supply of materials in the construction industry, delivery times of more than 10 weeks can occur with special colors of the 30 RW variant. We apologize for this situation, which is beyond our control.
-
Sanitary white
-
Black
-
Birch grey
-
Sea green
-
Cappuccino
-
Burano
-
Signal red
-
Minola
-
Mandarin
-
Lamar
-
Atlantic
-
Arctic
-
Quarzo
-
Serenissima
-
Silverspruce
-
Oak
-
Arezzo
-
Prado
Profiles and accessories standard colours
-
RAL 9010
-
RAL 7038
-
RAL 3003
-
RAL 1021
-
RAL 5011
-
RAL 5002
-
RAL 9005
-
Anodised look
-
Aluminium anodized
„ВИСОКО КАЧЕСТВО“ Е НАШЕТО СТАНДАРТ
Ние държим на стабилността, издръжливостта и устойчиви срещу вандализъм . Пантите от неръждаема стомана се монтират стандартно във всеки модел. Висококачествени алуминиеви профили и найлонови аксесоари също се предлагат в различни цветове без допълнително заплащане. Можете също да избирате между 12 стандартни цвята на панела. Всички видими ръбове са лепени с технологията лазерен Laser Tec. Този процес е уникален в индустрията на шкафовете и подчертава още веднъж качеството на нашите продукти.
Акценти: Панти от неръждаема стомана с месингов щифт се предлагат в 12 стандартни и 18 специални цвята, както при панела, 7 цвята за найлонови фитинги · 8 цвята за алуминиеви профили и панти от неръждаема стомана · Кратки срокове за доставка · Одобрено от TÜV
-

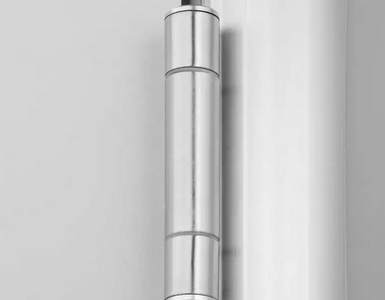

3-ROLL STAINLESS
-

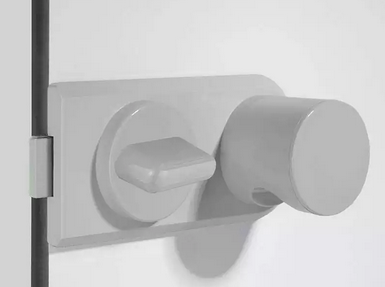

POWDER COATED
-

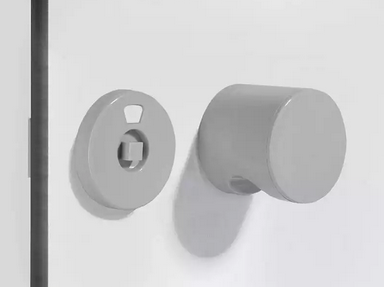

NYLON INDICATOR
-

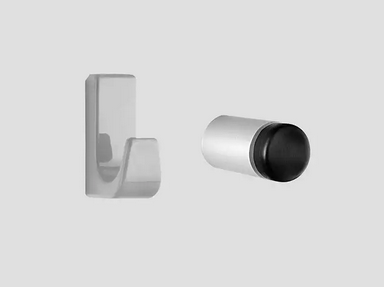

HOOK AND BUFER
-

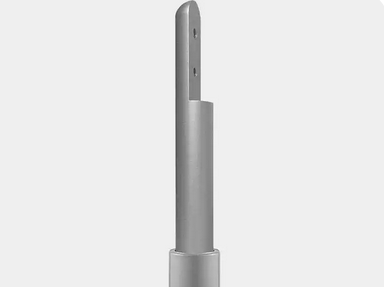

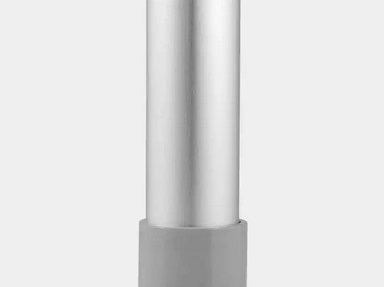

SUPPORT LEG
-
SUPPORT LEG
-

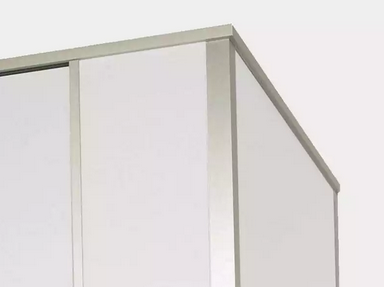

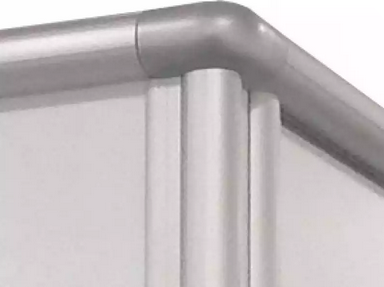

CORNER CONNECTION
-
CORNER CONNECTION
